The sectors where our BM60NC Machines are used: Shipyards, Heavy Industry Sectors, Excavation Equipment, Petrochemical Energy, Mining. Vibration is very low due to the fact that the busbar shaft is 60mm. It is suitable for fast cutting. The distance between the bearings is 1200 mm. It is suitable for working with 2 rolling bearings. Thanks to its small dimensions and low weight, it is very quick and easy to install. You will have multiple functions with just one machine. Our machines are guaranteed for 24 months. It is possible to operate with digital and analog buttons.
Description

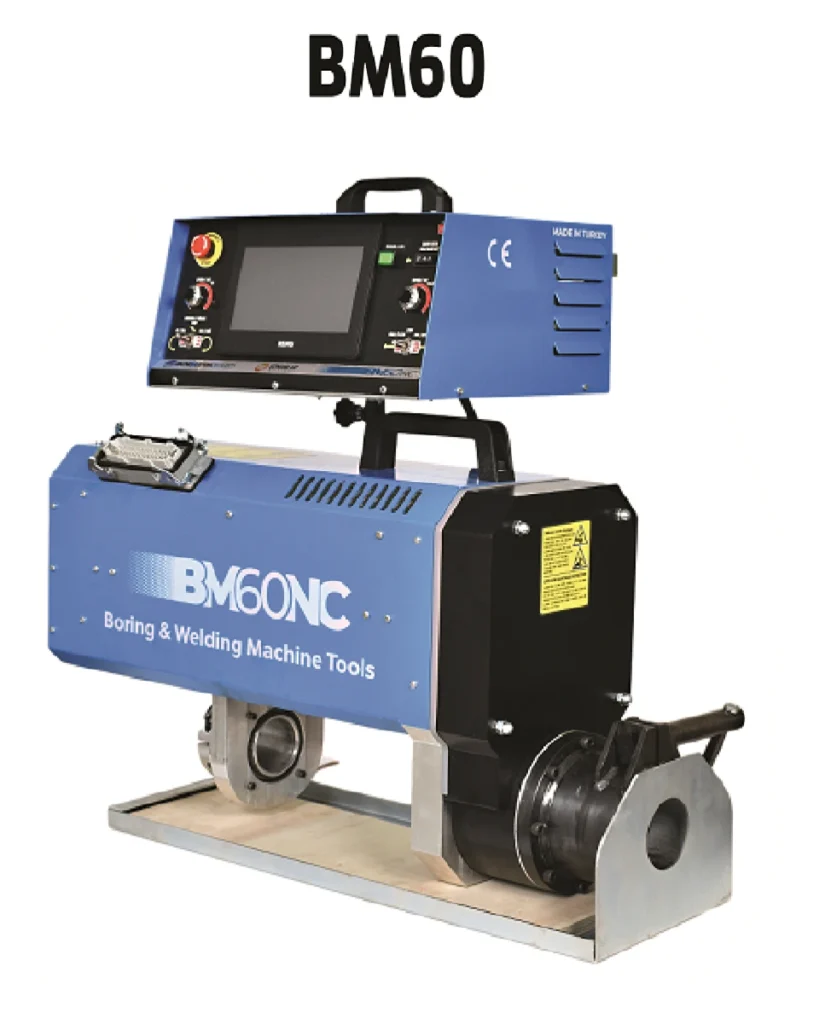

BM-60 copes well with large diameters and hard metals. This powerful and precise machine can bore holes up to 700mm in diameter. This machine will speed up your work significantly and save your precious time.
It is possible to control digital and analogue buttons.
The machine can remember the parameters of digital welding and cutting data.
Has a start and stop function using a digital ruler.
Display engine torque value on digital screen.
| Model | Motor | Weight | Rotation speed | Shift | Bores a hole with a diameter | Weld a hole with a diameter |
| BM60 | AC Servo Motor | 43 kg | 180 RPM/DK | 380 mm | 62-750 mm | 62- 750 mm |
Functionality
- Automatic hole welding
- Welding of external holes
- Drilling with a Morse drill
- Threading
- Surface machining (with KIT 280)
- Grooving for circlips (with KIT280)
Technical data
- Hole drilling diameter from 62 to 750 mm
- Hole welding diameter from 65 to 750 mm
- Tool holder diameter: 16mm
- Boring shaft hole spacing: 100 mm
Additional sets
- KIT-40 (boring shaft set 30mm)
- KIT 280 for surface machining
What is included in standard KIT?
| 1 | Connectable Tool Holder Shaft Q 60mm Length 2200 mm 62HRC |
| 1 | Connectable Tool Holder Shaft Q 60mm Length 1500 mm 62HRC |
| 1 | Electronic Control Panel |
| 1 | BM60 Machine |
| 1 | Complete Trolley |
| 1 | Machine Stand |
| 4 | Bearing Carrier |
| 12 | Bracket 30x40x100mm |
| 1 | Tool-Holder S16K SCLCR 120 mm |
| 1 | Tool-Holder S16K sCLcL120mm |
| 1 | Tool-Holder S16D SCACR 60mm |
| 1 | Tool-Holder S16D SCMCN 60 mm |
| 1 | Tool-Holder 25x25x100mm CKJNR M16 |
| 10 | Carbide Insert (Code: CCMT09T304) |
| 10 | Carbide Insert (Code: Knux-K11 Extra) |
| 1 | Comparator Adjustment 600mm |
| 2 | Centering ring |
| 6 | Centering ring holder 30x15x70mm |
| 6 | Centering adjustment bolt M14x150mm |
| 1 | Allen Key Set (3T-5T-8T-14T) |
| 1 | Filister head screwdriver |
| 1 | 22/24 Wrenches |
| 1 | Indicator holder cleat |
| 1 | Morse Key |
| 12 | M16x50 mm Pin Bolt |
| 12 | M16x50 mm T Hexagon Socket |
| 12 | Bolt Nut M16 |
TOOL-HOLDER
| 1 | Tool-Holder Bar Extension D. 130 mm |
| 1 | Tool-Holder Bar Extension D. 180 mm |
| 1 | Tool-Holder Bar Extension D.270 mm |
| 1 | Tool-Holder Bar Extension D.450 mm |
| 1 | Tool-Holder Bar Extension D. 590 mm (Extra) |
| 6 | Bracket 30x34x350 mm (Brackets For Adjusting Diameters) |
| 6 | M14x400 mm Bolt For The Centering Kit |
WELDING EQUIPMENT
| 1 | Telescopic Welding Torch Shaft Q 60 mm 1500 mm + 1350 mm Light 2850 mm |
| 1 | Welding Torch Cable With Euro fitting 3mt |
| 1 | Torch Head (A) 66 to 150 mm |
| 1 | Torch Head (B) 150 to 250 mm |
| 1 | Torch Head (C) 200 to 250 mm |
| 1 | Torch Head Extension (Tip A) 50 mm |
| 1 | Torch Head Extension (TipA)100mm |
| 1 | Torch Head Extension (TipA)150mm |
| 1 | Torch Head Extension (Tip A)300mm |
| 5 | Short Welding Wire Nozzles 38 mm |
| 5 | Short Welding Wire Nozzles 50 mm |
| 5 | Long Welding Wire Nozzles 250 mm |
| 1 | Nipple 250 |
| 5 | Copper Wire Contact 0,8×25 mm |
| 5 | Copper Wire Contact 1.0×25 mm |
| 1 | Welding Protective Spray |
Spare parts
| 1 | Chain 2×0.8B |
| 1 | Belt T5x420 |
| 1 | Tool Fixing Screw |
| 2 | M10x14 mm-M10x8 mm-M10x30 mm |
| 1 | Manual |
Packing size
| Product | Size(m3) | Weight | Packing weight | Weight netto | Weight brutto |
| BM-60 | 110x66x120 | 250 kg | 50 kg | 300 kg | 390 kg |
| Shafts | 250x34x19 | 70 kg | 20 kg | 90 kg |
Catalog: BM60-ekatalog
